10W 12V Marine Solar Charger Kit

The 10 Watt, 12 Volt Boat Lift Charging Kit is designed for lifts for light boats (less than 4500 pounds) and single 12 volt DC battery charging systems. Either a hanging tray (canopy required) or standard universal battery tray is available for an additional $60.00.

With a high quality solar panel and several included components, this kit will keep your boat lift battery in top condition and can also be used to charge other 12 volt batteries.

Your electric DC lift motor will always have the power to raise and lower your boat when you’re ready to get out on or off the water. The Marine Solar Charger Kit also can be used to charge any 10 watt, 12 volt marine battery.

If you have a heavier boat or need several lifts per day, we recommend considering our stronger 15 watt or 20 watt kits.

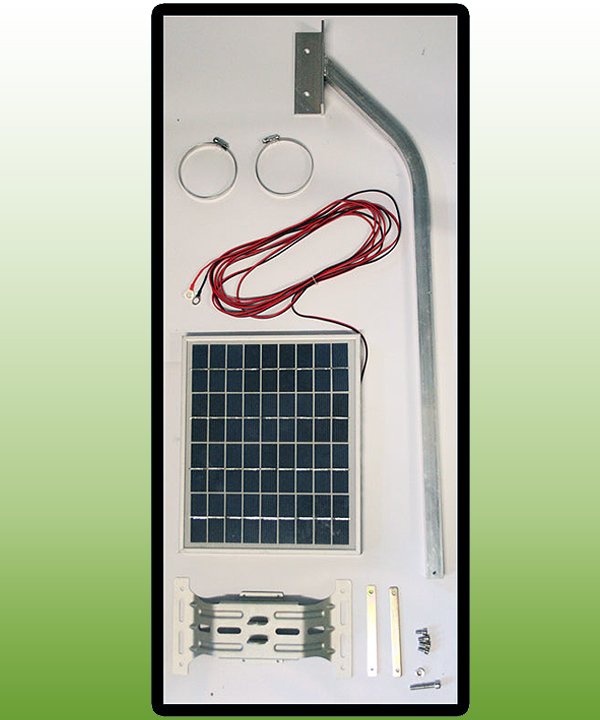

The 10 watt, 12 Volt Boat Lift Solar Charging Kit includes the following components:

• One 10 watt 12 volt High Efficiency Solar Panel With Anodized Frame
• 20-foot Red-Black Color Coded 18AWG Wire and Quick Connect
• 3/8-inch Battery Connection Ring Terminals and Quick Connect
• 36-inch mounting arm, bracket, and hardware (please call for prices on 48-inch & 72-inch mounting arms, which are available as extra options)
• Battery Tray
  - Select Universal Mounted Tray (all lifts or purposes)
  - Select Hanging Tray (Boat Lift Canopy required)
• 2-Stainless Steel Mounting Straps Instructions & Wiring Diagram
• Free Technical Support

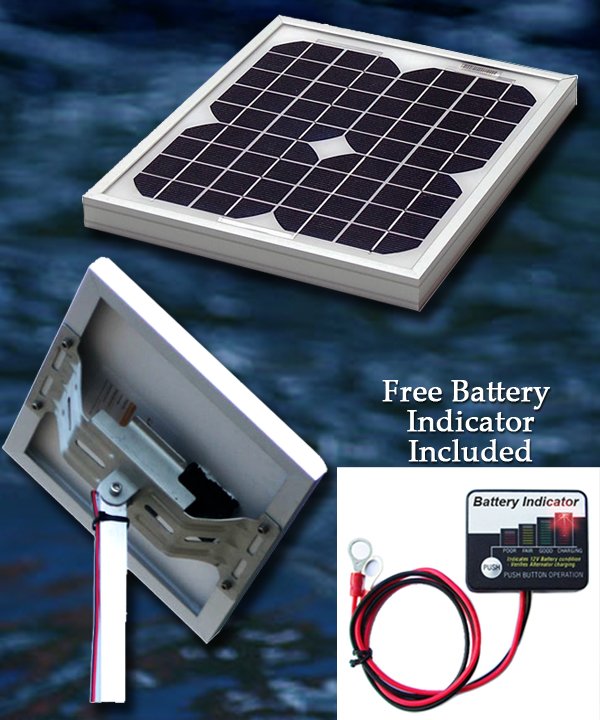

• Free Battery Status Indicator
• Free Customized Wire Lengths and Quick Connects if required (please call for more information)

Product Features (Electrical Specifications are provided below the recommended options):

• Quality, high efficiency mono-crystalline solar cells
• Anodized aluminum frame for durability and long life span
• Kit can be mounted to any boat lift, with average installation time of less than one-half hour<
• Solar Panel has a lifetime rating of 20-plus years
• Made for 12 DC boats and boat lifts
• Replaceable wiring and Quick Connect System
• Angle of solar panel is adjustable for maximum solar charge
• J-Arm easily handles storms & high winds
• Solar Panel Warranty: 10 years for materials and workmanship

Discounted Option: Solar Charge Regulator
Sold at a discount with this kit, our Solar Charge Regulator is one of the first 12 volt solar regulators with an Intelligent Battery Management System (IBMS). IBMS is an advanced micro-processor programmed to intelligently monitors battery conditions up to 100% (standard regulators monitor batteries at 55-60%.)

An LED indicator shows the charge status, letting you know the regulator is working and the charging state (SOC) of the battery. Rugged aluminum housing and epoxy encapsulated electronics make it durable and water proof. Comes with 2-pin connects that fit our solar panels for reliable, fast connections. Quick installation is permitted by 3/8-inch ring terminals to the battery side.

Solar Charger Electrical Specifications

• Nominal Peak Power: 10wp
• Maximum Power Voltage (Vmp): 18.0v
• Maximum Power Current (Imp): 0.56A
• Short-Circuit Current (Isc): 0.63A
• Open Circuit Voltage (Voc): 21.5v
• Optimized Cell Efficiency Percentage: 17.2%
• Power tolerance: ± 3%
• STC: Irradiance of 1000W/m², Air Mass of 1.5, Cell Temperature of 25°C
• Operating Module Temperature: Operating Module Temperature: -40° Celsius /-40° Farhenheit to +85°Celsius / +180 Farhenheit
• Maximum System Voltage: 600VDC
• Temperature and Coefficients:
  -40° Celsius /-40° Farhenheit to +85°Celsius / +180 Farhenheit
  Current Temperature Coefficiency Percentage: Celsius 0.005
  Voltage Temperature Coefficiency Percentage: Celsius -0.33
  Power Temperature Coefficiency Percentage: Celsius -0.44
• Number of cells and type of connection: 36 series
  - Dimensions: 305mm by 291mm by 25 mm / 12 inches by 11.45 inches by .96 inches
• Guaranteed Power Output
  - 10 Years: 90% of its nominal power rating
  - 20 Years: 80% of its nominal power rating
• Impact Resistance: solar panel can bear force generated by one 227gram / 8 ounce steel ball dropped from height of 1 meter / 3.28 feet
