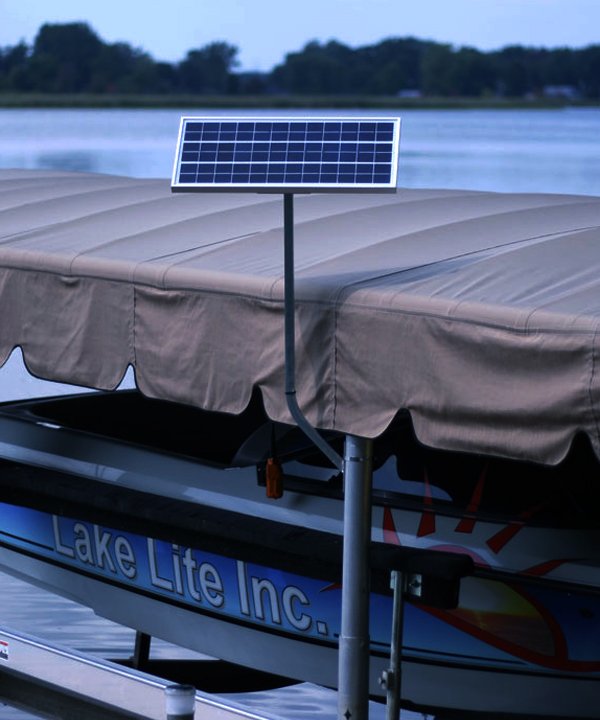

20W 12V Marine Solar Charging Kit
Our 20 watt, 12 volt solar marine charger provides maximum power and is a robust solution for boat batteries and boat lift system that use single 12 volt batteries.
You can select this item without a tray, or select either a Universal or Hanging Tray for an additional discounted cost. Please note that Hanging Trays require a boat lift canopy. This product also comes with the following options: free 3-foot mounting arms (longer arms available as extra options); free Battery Status Indicator; and a free Solar Charge Controller Regulator which is necessary to properly operate this system.
If you use your boat lift frequently or have heavy boats (up to 10,000 pounds) this system is recommended over our other quality, but lower wattage systems.
Along with better performance and more reliability for those who take boats in and out of the water more than once a day, this system absorbs significantly more solar power, meaning that it will provide quality performance even on cloudy days. (Note: repeated days without sun impacts virtually all solar systems.)
The high quality solar panel and components mean your battery will be in top condition, making sure that your electric DC lift motor is has the power necessary to raise and lower your boat when you want to get on or off of the water.
This is a great system for the daily user that lives on the water! Make sure that your boat lift battery or motor will be up to the challenge, even on long weekends or when you're on vacation! When other boater's batteries may well be over taxed, yours will be ready to go!

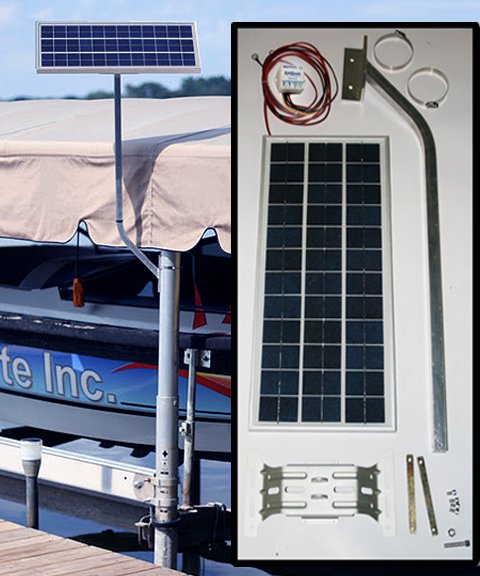

The 20 Watt 12 Volt Solar Marine Charger/Boat Lift Charging Kit comes with all items needed for regular use, including:
- 20 watt / 12 volt High Efficiency Solar Panel With Anodized Frame
- 20-foot Red / Black color-coded 18AWB Wire and Quick Connect system
- 3/8-inch battery connection ring terminals with Quick Connect system
- 36-inch (3-ft) mounting arm, bracket and hardware standard
- 48-inch and 72-inch mounting arms available as options for Extra CostsÂ
- When selecting mounting arm height, consider nearby objects that may cast shadows on the panel

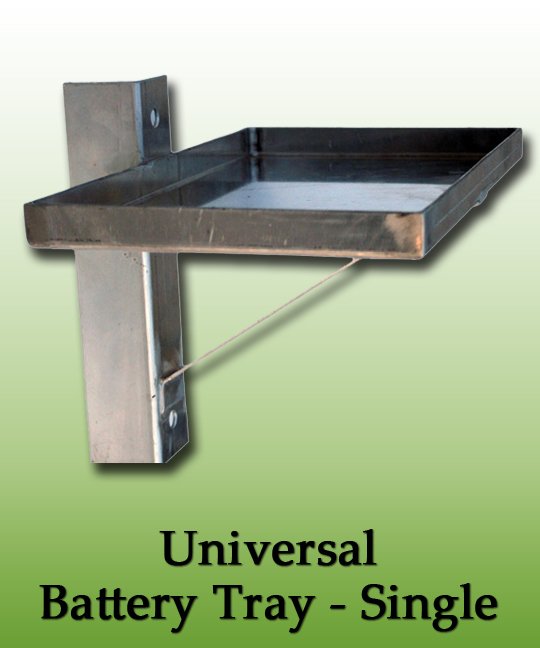

- Battery Tray: Select either Universal or Hanging Tray for Extra Cost
- Two (2) stainless steel mounting straps
- Detailed instructions and wiring diagram
- Free technical support (non-field) from manufacturer

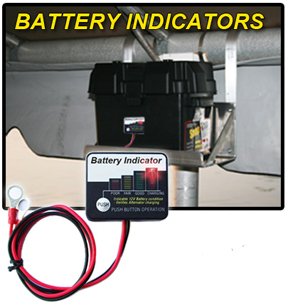

- Free Battery Status Indicator
- Free Solar Charge Controller Regulator, which is required for this system
- Customized wire lengths and Quick Connects are available; please call (866) 686-6903 before ordering, as we can provide these at no extra cost with this kit
Why Use the Solar Controller/Regulator?
The 20 watt / 12 Volt solar panel provides to make sure your battery is ready for lifting needs, but a solar charging regulator is necessary to prevent overcharging and damage to your battery which is a possibility when the battery is not used for extended periods of time.
Without a solar regulator, it is entirely possible that too much solar power could damage the battery and any connected systems.
| LED Status | Charge Status |  |
| Fast Flash | Fast-Charging | |
| Constant Light | Bulk-Charging | |
| Slow Flash | Float-Charging |
The combination of the powerful 20 watt solar panel and the smart charge controller/regulator makes sure your ready to hit the water without worrying about weak or dead batteries.
The smart controller has an advanced microprocessor that boosts charging performance by up to 50 percent. (Detailed electrical specifications for this it are provided at the bottom of this product description.)
In addition, you'll always know the status of the charge and battery through an easy to read LED indicator light, and always lets you know the status of the charge and the battery with a convenient LED indicator light as shown in the table below. This is a proven charging solution!
Product Features:
- One (1) High-Efficiency Solar Panel with anodized aluminum frame
- Easily mounts to any boat lift system with average installation time of less than 30 minutes
- Solar Panel has a lifetime rating of 20-plus years and comes with a 10-year manufacturer's warranty
- Panel designed for 12 volt DC boat lifts and boats
- Wiring and Quick Connect System can be replaced over the long life time of the solar panel
- J-Arm easily handles storms and high winds
- Advanced Smart Charge Controller protects battery while helping to ensure reliable battery performance
Electrical Specifications
- Nominal Peak Power: 20wp
- Nominal Peak Power: 20wp
- Maximum Power Voltage (Vmp): 18.0v
- Maximum Power Current (Imp): 1.12A
- Short-Circuit Current (lsc): 1.23A
- Open-Circuit (lsc): 1.23A
- Optimized Cell Efficiency Percentage: 17.2%
- Power Tolerance: ± 3%
- STC: Irradiance of 1000W/m², Air Mass of 1.5, Cell Temperature of 25°C
- -40° C to +85°C / -40° to +180°F
- Maximum System Voltage: 600VDC
- Temperature and Coefficients:
- NOCT: -40° C to +85°C / -40° to 180°F
- Current Temperature Co-Efficiency Percentage: C 0.005
- Voltage Temperature Co-Efficiency Percentage: C-0.33
- Power Temperature Co-Efficiency Percentage: C -0.44 - Number of cells and type of connection = 36 series
- Solar Panel Dimensions: 565mm by 291mm by 25mm / 22.25 inches by 11.5 inches x .95 inches
- Panel Weight: 2.06kg / 4.54 inchesImpact Resistance: solar panel can bear force generated by one 227gram / 8 ounce steel ball dropped from height of 1 meter / 3.28 feet
- Solar Panel Warranty: 10 year limited manufacturer's warranty
