20 Watt Solar Water Pump with Battery and LEDs

This high-powered 20 Watt Solar Water Pump with Battery and LED Light is a powerful solar pump with a capacity of 422 GPH, a hydraulic lift/head of 9.8 feet (118 inches of hydraulic head pressure) when used with a half-inch tube, or create a fountain spray 7.5 feet tall with included fountain heads.

It is designed for outdoor use for larger fountains or ponds. A battery stores energy from the solar panels, allowing the pump to work for up to 2 hours at night or during cloudy weather.

This pump can be used used either of two fountain heads to create an attractive spray circulation. Two different fountain heads provide different sprays; three included extensions let you adjust the height of the fountain.

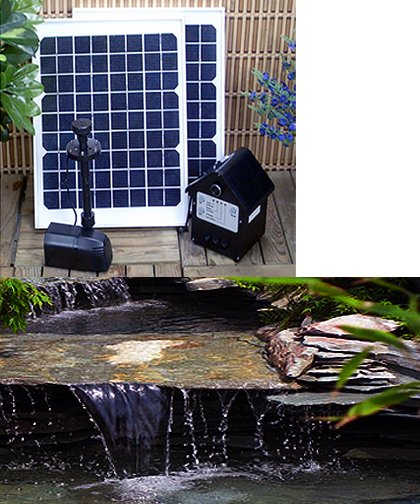

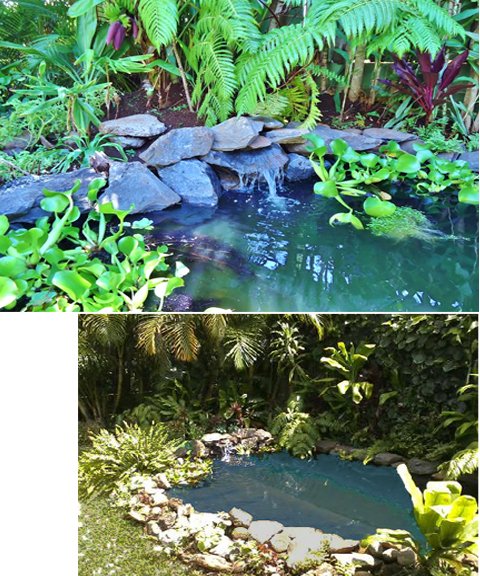

This pump is also ideal to move water through tubes or conduits (not included) to create your own water features, including small waterfalls such as those shown in the product photos. (Please note that the waterfalls shown in our product photos were created by our customers using the 20 Watt Solar Water Pump.)

Two (2) 10 Watt Solar Panels power one pump combine to power a 12 to 24 volt adjustable pump.

The pump and its water flow rate is adjusted by a variable Speed Valve, so you have lots of options, lots of control.

Note: it is always better to buy a pump with a capacity greater than you need. You can always turn the volume down, but you cannot increase a pump's maximum capacity.

This pump can also be used to retrofit or create new water features or waterfalls (conduit/tube and clamps required, and are not included). While flow of solar powered waterfalls is not as strong as from a heavy duty electric pump (which cost hundreds of dollars more) many of our solar pumps are strong enough to do this: letting you save considerable electrical costs.

An LED fountain light automatically turns on at dusk, while a battery stores energy from the solar panel so the pump works during cloudy weather and up to two hours at night.

Daytime Mode: This mode should be used when sunlight condition is good. Solar energy runs the pumps while diverting power to battery for use in night mode. During Daytime Mode, pump performance is directly related to the intensity of sun.

Nighttime Mode: This mode should be used during overcast condition and at night. The pump runs by battery if there is sufficient power in the battery.

Variable Water Flow Function: Users can adjust the water flow by simply pressing a on the control box. There are 4 levels of water flow to fit different size fountain needs. (Water flow also can be adjusted directly from the pump.)

2 Hour Timer Function: This function works under NIGHT MODE and lets you run the pump 2 hours each night and then stop to save energy, or will run until the battery power is spent.

Pump Specifications:

• Solar Module 2 (two) 10 Watt Solar Panels
• One (1) DC Brushless Pump with 12 to 15 Operation Voltage
• Water/Hydraulic lift for the pump: 118 inches when used with half-inch diameter tube
• Fountain spray: up to  7.6 inches tall 6-feet, 6-inches
• Accessories include: 2 fountain heads and 3 inter-connect-table tubes, 2 solar panel support spikes.

Other Product Features:

• Each solar panel is 14 inches tall/high, 12 inches wide, and 1 inch thick
• Two fountain heads, three extensions allow flexibility to install a fountain head in a pond
• Water Circulating/Flow Capacity: 422 GPH
• Two cables provided between solar panels and both the pump and LEDs (16.5 feet long, allowing flexibility to place the pump where you need it and the solar panels where they will get the strongest sunlight)
• 18V DC Brushless Pump with 16 foot cable

Pump Dimensions: 14.5 inches long x 8.5 inches wide x 10.5 inches high

Package includes:

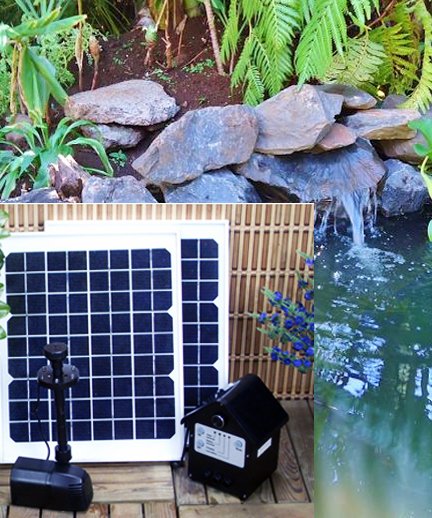

• 2 Solar Panels, each with 16.5 feet cord between solar panal and pump
• One (1) 12-24V submersible pumps with 16 feet lead
• Control systems with battery
• Fountain light with 5 LEDs
• Rechargeable Battery: Lead Acid 12V-4AH, included
• 30 Day Limited Warranty
